ORB (O-Ring Boss) Weld Insert

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

O-Ring Boss (ORB) Weld Insert

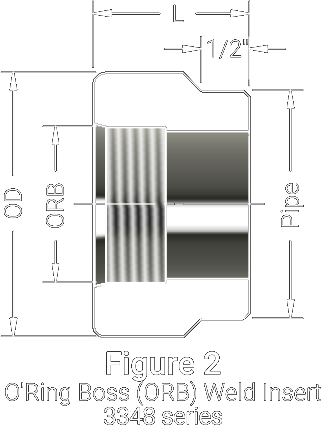

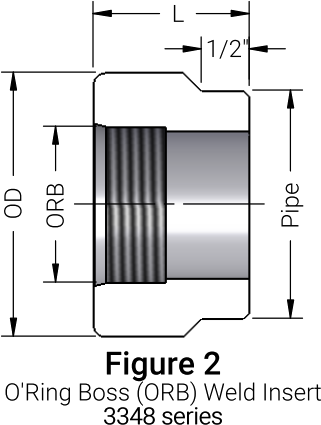

Figure 2 ORB Insert	ORB (thread)	Pipe (OD)	L	OD
3348-06-12	#6 (9/16"-18)	3/4" (1.050)	1.25	1.50
3348-08-12	#8 (3/4"-16)	3/4" (1.050)	1.25	1.50
3348-08-16	#8 (3/4"-16)	1" (1.315)	1.31	1.75
3348-12-16	#12 (1-1/16"-12)	1" (1.315)	1.31	1.75
3348-12-20	#12 (1-1/16"-12)	1-1/4" (1.660)	1.38	2.00
3348-16-20	#16 (1-5/16"-12)	1-1/4" (1.660)	1.38	2.00
3348-12-24	#12 (1-1/16"-12)	1-1/2" (1.900)	1.50	2.25
3348-16-24	#16 (1-5/16"-12)	1-1/2" (1.900)	1.50	2.25
3348-20-24	#20 (1-5/8"-12)	1-1/2" (1.900)	1.50	2.25
3348-16-32	#16 (1-5/16"-12)	2" (2.375)	1.63	2.75
3348-20-32	#20 (1-5/8"-12)	2" (2.375)	1.63	2.75
3348-24-32	#24 (1-7/8"-12)	2" (2.375)	1.63	2.75
3348-16-40	#16 (1-5/16"-12)	2-1/2" (2.875)	1.75	3.25
3348-20-40	#20 (1-5/8"-12)	2-1/2" (2.875)	1.75	3.25
3348-24-40	#24 (1-7/8"-12)	2-1/2" (2.875)	1.75	3.25
3348-32-40	#32 (2-1/2"-12)	2-1/2" (2.875)	1.75	3.25
