Code 61 & Code 62 4-Bolt Flanges
ORB (O-Ring Boss) to Code 61 & Code 62 Flanges
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Code 61 ORB Flanges | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

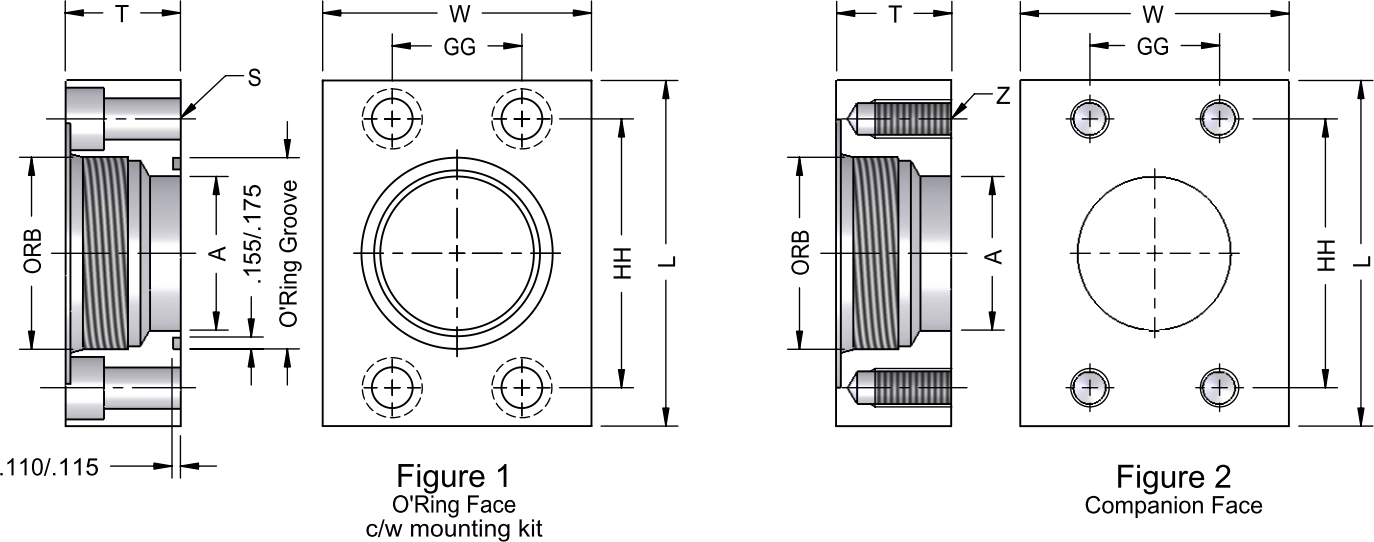

| Figure 1 O-Ring Face | Figure 2 Companion Face | ORB (thread) | Flange Size | O-Ring Groove | A | S | Z | GG | HH | L | W | T |
1203-08-083d | 1202-08-08 | #8 (3/4"-16) | 0.50 | 1.000 | 0.50 | 11/32 | 5/16"-18 | 0.688 | 1.500 | 2.19 | 1.50 | 1.00 |
1203-12-123d | 1202-12-12 | #12 (1-1/16"-12) | 0.75 | 1.250 | 0.75 | 13/32 | 3/8"-16 | 0.875 | 1.875 | 2.63 | 1.75 | 1.00 |
1203-12-163d | 1202-12-16 | #12 (1-1/16"-12) | 1.00 | 1.560 | 0.97 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 1.00 |
1203-16-163d | 1202-16-16 | #16 (1-5/16"-12) | 1.00 | 1.560 | 1.00 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 1.00 |
1203-16-203d | 1202-16-20 | #16 (1-5/16"-12) | 1.25 | 1.750 | 1.22 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.13 | 2.50 | 1.25 |
1203-20-203d | 1202-20-20 | #20 (1-5/8"-12) | 1.25 | 1.750 | 1.25 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.13 | 2.50 | 1.25 |
1203-20-243d | 1202-20-24 | #20 (1-5/8"-12) | 1.50 | 2.115 | 1.50 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 1.25 |
1203-24-243d | 1202-24-24 | #24 (1-7/8"-12) | 1.50 | 2.115 | 1.50 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 1.25 |
1203-24-323d | 1202-24-32 | #24 (1-7/8"-12) | 2.00 | 2.490 | 1.78 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 1.50 |
1203-32-323d | 1202-32-32 | #32 (2-1/2"-12) | 2.00 | 2.490 | 2.00 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 1.50 |
1203-32-403d | 1202-32-40 | #32 (2-1/2"-12) | 2.50 | 2.995 | 2.41 | 17/32 | 1/2"-13 | 2.000 | 3.500 | 4.50 | 4.00 | 1.50 |
| Code 62 ORB Flanges | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure 1 O-Ring Face | Figure 2 Companion Face | ORB (thread) | Flange Size | O-Ring Groove | A | S | Z | GG | HH | L | W | T |
1856-08-08 | 1855-08-08 | #8 (3/4"-16) | 0.50 | 1.000 | 0.50 | 11/32 | 5/16"-18 | 0.718 | 1.574 | 2.22 | 1.75 | 1.00 |
1856-12-12 | 1855-12-12 | #12 (1-1/16"-12) | 0.75 | 1.250 | 0.75 | 13/32 | 3/8"-16 | 0.937 | 2.000 | 2.81 | 2.00 | 1.00 |
1856-12-16 | 1855-12-16 | #12 (1-1/16"-12) | 1.00 | 1.560 | 0.97 | 13/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 1.25 |
1856-16-16 | 1855-16-16 | #16 (1-5/16"-12) | 1.00 | 1.560 | 1.00 | 13/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 1.25 |
1856-16-20 | 1855-16-20 | #16 (1-5/16"-12) | 1.25 | 1.750 | 1.22 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 1.25 |
1856-20-20 | 1855-20-20 | #20 (1-5/8"-12) | 1.25 | 1.750 | 1.25 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 1.25 |
1856-20-24 | 1855-20-24 | #20 (1-5/8"-12) | 1.50 | 2.115 | 1.50 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 1.50 |
1856-24-24 | 1855-24-24 | #24 (1-7/8"-12) | 1.50 | 2.115 | 1.50 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 1.50 |
1856-24-32 | 1855-24-32 | #24 (1-7/8"-12) | 2.00 | 2.490 | 1.78 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 1.50 |
1856-32-32 | 1855-32-32 | #32 (2-1/2"-12) | 2.00 | 2.490 | 2.00 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 1.50 |
