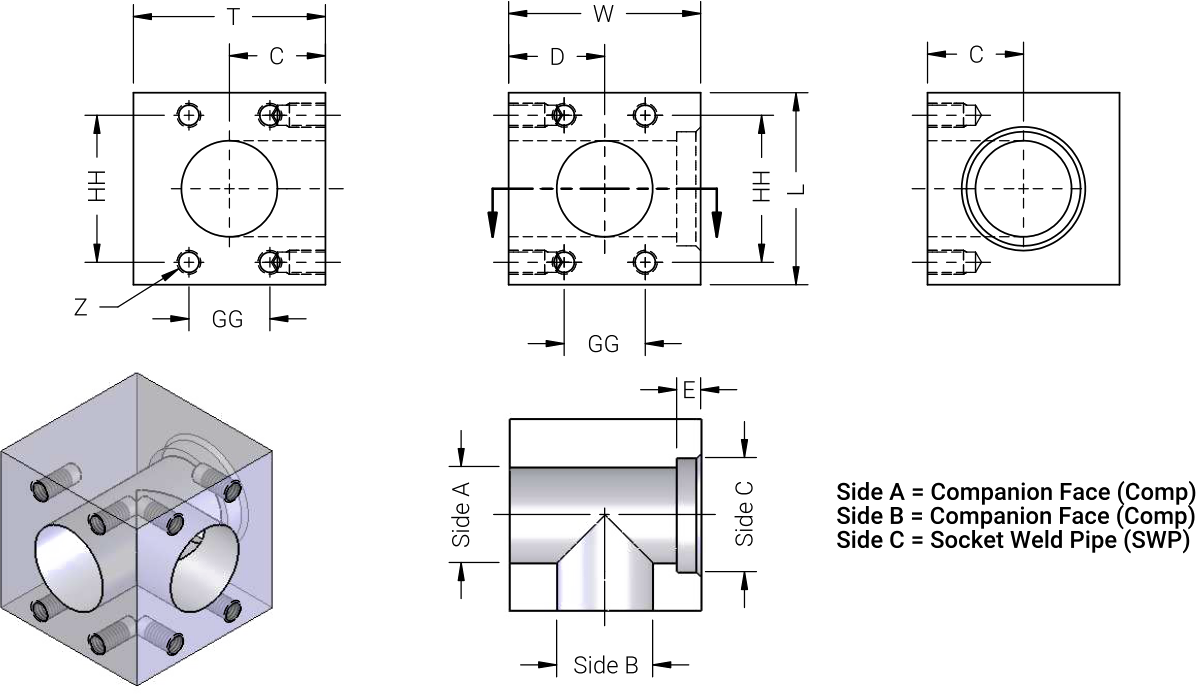

Code 61 & Code 62 Tee - Comp/Comp/SWP

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

Code 61 Companion/Companion/SWP Tees
Part Number	Side A Comp	Side B Comp	Side C SWP (OD)	C	D	E	Z	GG	HH	L	W	T
1966-08-08-08	0.50	0.50	1/2" (.845)	1.12	0.75	0.38	5/16"-18	0.688	1.500	2.12	1.50	2.00
1966-12-12-12	0.75	0.75	3/4" (1.055)	1.37	1.00	0.50	3/8"-16	0.875	1.875	2.56	2.00	2.50
1966-16-16-16	1.00	1.00	1" (1.320)	1.37	1.00	0.50	3/8"-16	1.031	2.062	2.75	2.50	2.50
1966-20-20-20	1.25	1.25	1-1/4" (1.670)	1.62	1.50	0.50	7/16"-14	1.188	2.312	3.12	3.00	3.00
1966-24-24-24	1.50	1.50	1-1/2" (1.910)	1.88	1.75	0.63	1/2"-13	1.406	2.750	3.69	3.50	3.50
1966-32-32-32	2.00	2.00	2" (2.388)	2.25	2.00	0.63	1/2"-13	1.688	3.062	4.00	4.00	3.50

Code 62 Companion/Companion/SWP Tees
Part Number	Side A Comp	Side B Comp	Side C SWP (OD)	C	D	E	Z	GG	HH	L	W	T
1969-08-08-08	0.50	0.50	1/2" (.845)				5/16"-18	0.718	1.574
1969-12-12-12	0.75	0.75	3/4" (1.055)				3/8"-16	0.937	2.000
1969-16-16-16	1.00	1.00	1" (1.320)				7/16"-14	1.093	2.250
1969-20-20-20	1.25	1.25	1-1/4" (1.670)				1/2"-13	1.250	2.625
1969-24-24-24	1.50	1.50	1-1/2" (1.910)				5/8"-11	1.437	3.125
1969-32-32-32	2.00	2.00	2" (2.388)				3/4"-10	1.750	3.812
